Sicurpal walkways

Collective fall protection systems

Sicurpal walkways are designed for securing passages at height and/or in the presence of obstacles.

  • Made entirely of aluminium
  • Non-slip walking surface
  • Designed to be used only on flat surfaces, or fixed to the roof by supports, for a maximum load capacity of 200 kg/sqm.
  • For special requirements, request a quotation communicating the specifications required (walkway measurements, distance between supports, load capacity, place of installation, etc.).
  • They can be custom-designed according to the required length.

SICURAL WALKWAY TECHNICAL FEATURES

Standard width mm 600/800 (decking)
Standard module length mm 1000/2000/3000 (to be chosen by the designer in the case of multiple module compositions. Multiple modules of 200 mm)
Height mm 1100
  • Passerella Sicu
    Art. 005588
    Passerella Sicurpal 1,0 m x 600mm
  • Passerella Sicu
    Art. 005660
    Passerella Sicurpal 1,0 m x 800mm modulo completo
  • Passerella Sicu
    Art. 009095
    Passerella Sicurpal 2,0 m x 600mm
  • Passerella Sicu
    Art. 005251
    Passerella Sicurpal di centrale 2 m x 800mm
  • Passerella Sicu
    Art. 009007
    Passerella Sicurpal 3,0 m x 600mm modulo centrale
  • Passerella Sicu
    Art. 005616
    Passerella Sicurpal 3,0 m x 800mm modulo finale

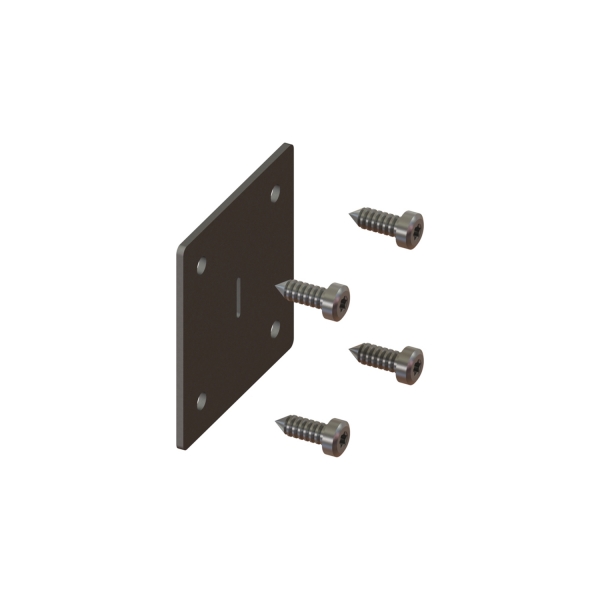

  • Coppia Chiusura
    Art. 004020
    Coppia Chiusura Profilo Passerella: kit con 2 lamiere + 4 viti 4.8x16 autofil.
  • Giunzione passe
    Art. 009111
    Giunzione passerella L250. Da fissare con nr. 8 bulloni M10 non forniti
  • Kit B27
    Art. 009733
    Kit bulloneria TM M10 per giunzione passerella. formato da: 8 bullone TM 10x30 + 8 dado autobloccante M10 + 8 rondelle M10
  • Tubolare e Ango
    Art. 005001
    Nr. 1 Tubolare di supporto comprensivo di nr. 2 Angolari per Fissaggio Passerella

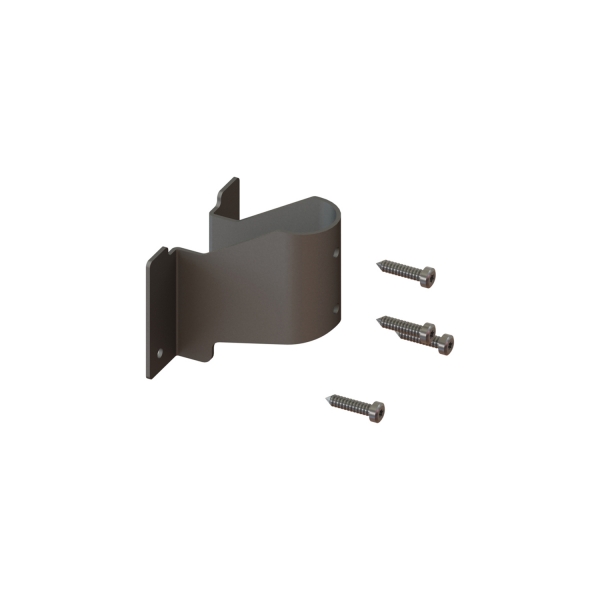

  • Bracket guardra
    Art. 004994
    H120 mm bracket for guardrail and walkway with 2x hammerhead screws.

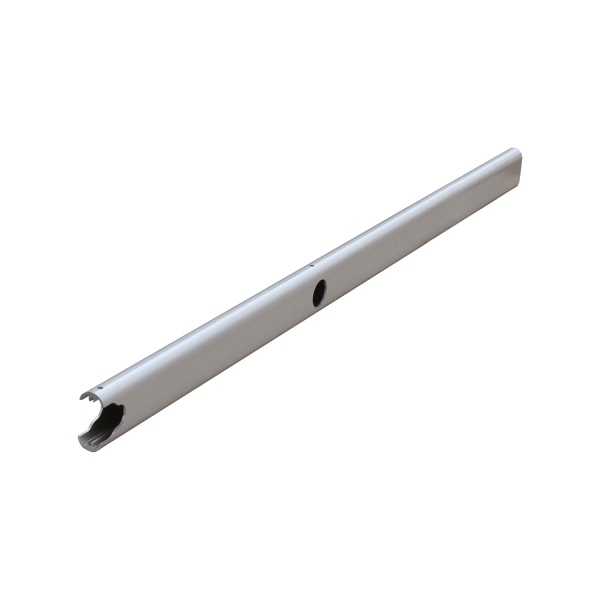

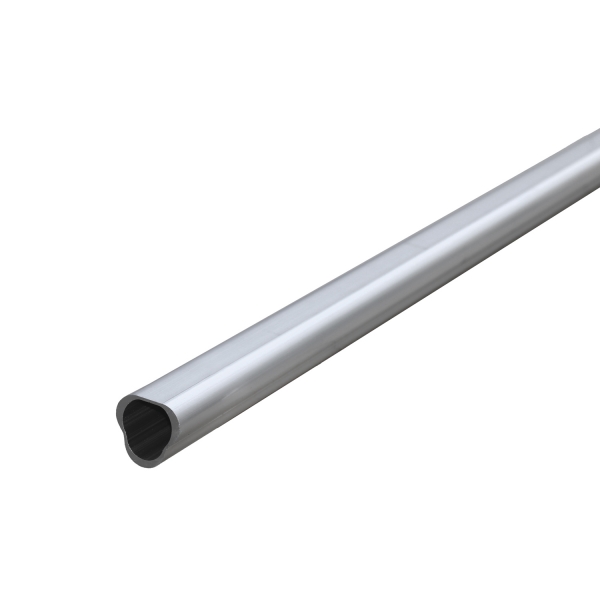

  • FIT handrail
    Art. 004478
    Handrail FIT version, tubular 40x3 and L=3000 mm

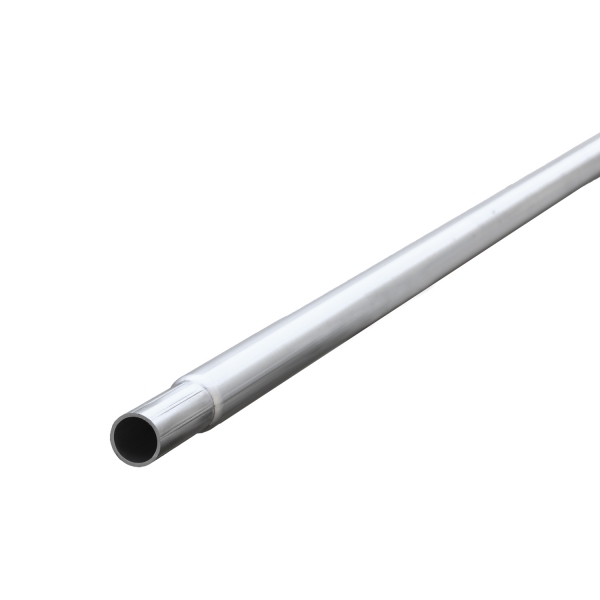

  • Knee rail
    Art. 004479
    Knee rail FIT and BOLD version, tubular 35x2 and L=3000 mm

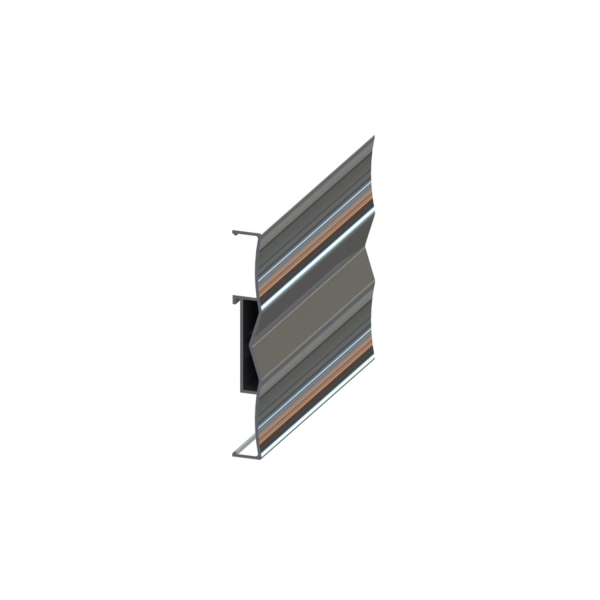

  • Toeboard
    Art. 004648
    3 meters toeboard with screws

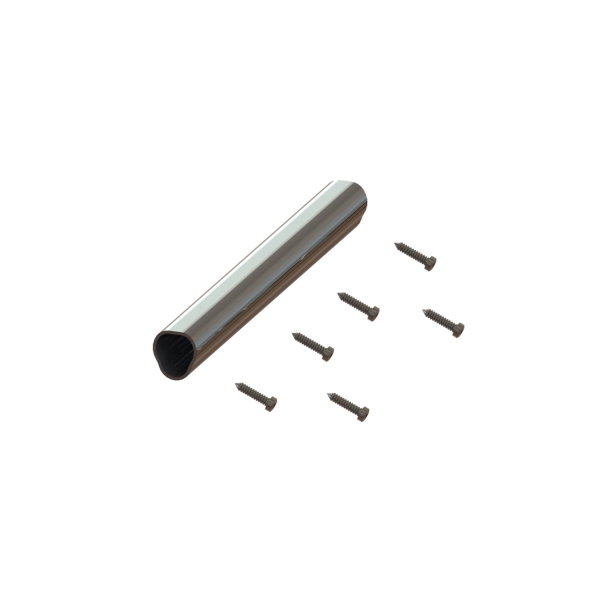

  • Cone. handrail
    Art. 004653
    FIT handrail connection 400 mm including 2 self-drilling screws for tubular joining
  • Cone. knee rail
    Art. 004654
    FIT and BOLD knee rail connection including 2 self-drilling screws for tubular joining

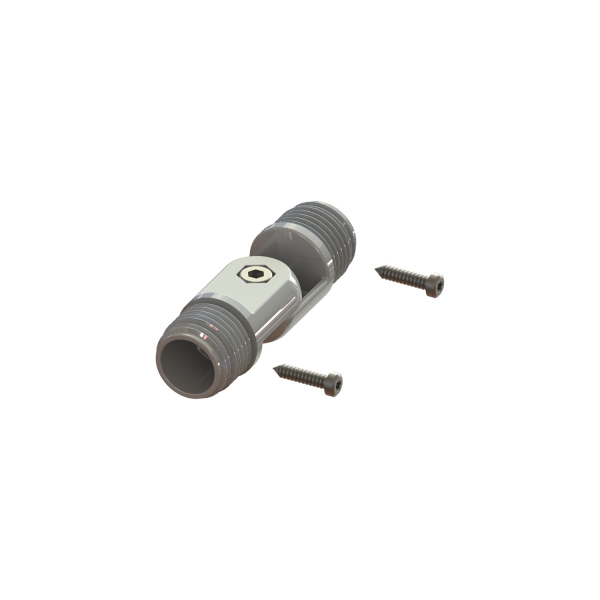

  • Variable corner
    Art. 004481
    Accessory for FIT handrail that allows to perform variable curves of minimum 45 ° including 2 self-drilling screws and clamping bolt m12.

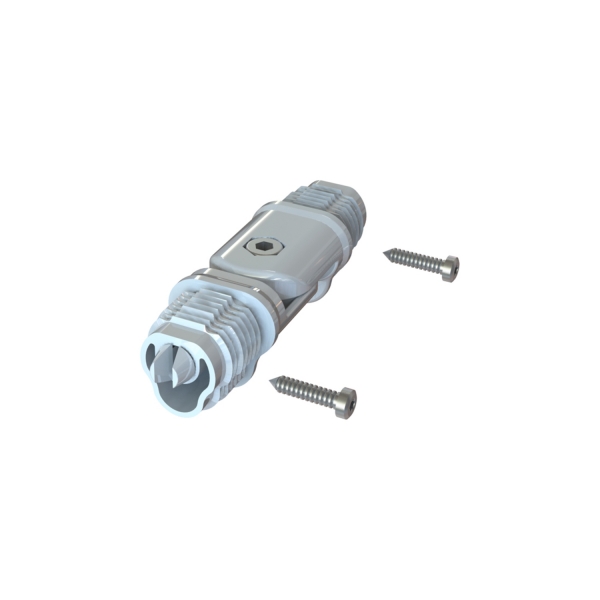

  • Variable corner
    Art. 004482
    Accessory for FIT and BOLD knee rail that allows to perform variable curves of minimum 45 ° including 2 self-drilling screws and clamping bolt m12 with plastic cover
  • P.lla Sicurpal
    Art. 005247
    Passerella Sicurpal modulo ad angolo calp. 0,8 m - L 1,2 m
  • Angolo Passerel
    Art. 009010
    Passerella Sicurpal modulo ad angolo calp. 0,6
  • Scala pass 800
    Art. 009471
    Codice Generico: Scala a 45° per passerella a scavalco largh. 800 mm, di altezza personalizzabile, min. 400 mm max 2000 mm
  • Scala pass 600
    Art. 009519
    Codice Generico: Scala a 45° per passerella a scavalco largh. 600 mm, di altezza personalizzabile, min. 400 mm max 2000 mm
